OPNsense vs pfSense : Full Comparison of Features, UI, and Hardware

Choosing between OPNsense vs pfSense is a common decision for anyone building a custom router or firewall for a home lab, small business, or advanced home network. Both platforms are popular open-source firewall solutions, but they differ in user interface, feature set, hardware support, and overall philosophy. pfSense has increasingly focused on pairing its software with official hardware, while OPNsense continues to appeal to the DIY and open-source community.

Back in early 2023, I set out to build my own dedicated router/firewall to replace my Ubiquiti EdgeRouter ER-X. It was a decent little box, but I wanted something more capable, powerful, and expandable. At that point in time, I did a very initial test of OPNsense vs pfsense and decided to move forward with OPNsense.

After running OPNsense for several years later I did an update review, however I wanted to do a more in-depth test of OPNsense vs pfsense to break down the features, user interface, VPN options, hardware options, and community support to decide what I think is the best router software and share the info to help you decide which firewall platform is the better fit for your network.

Software Versions

OPNsense Version	pfSense Version
OPNsense 25.1	2.8.0-RELEASE

Setup of pfSense in Virtual Machine

As I mentioned above, I am using OPNsense bare-metal as my current router, for testing, I used a virtual machine for my pfsense testing so I didn’t disrupt my network (I hoped). First time launching pfsense, it booted up with the WAN address the same as my current default gateway, so it took down my network. No worries, just powered of the virtual machine and it was resolved, but now I had to configure it to work on my computer, but still access the webui.

	Virtualbox Network	pfsense adapater
Adapter 1	Not attached	No Configuration
Adapter 2	Bridged Adapter	IP from your local network

User Interface

Lets walk through the user interface between OPNsense vs pfSense.

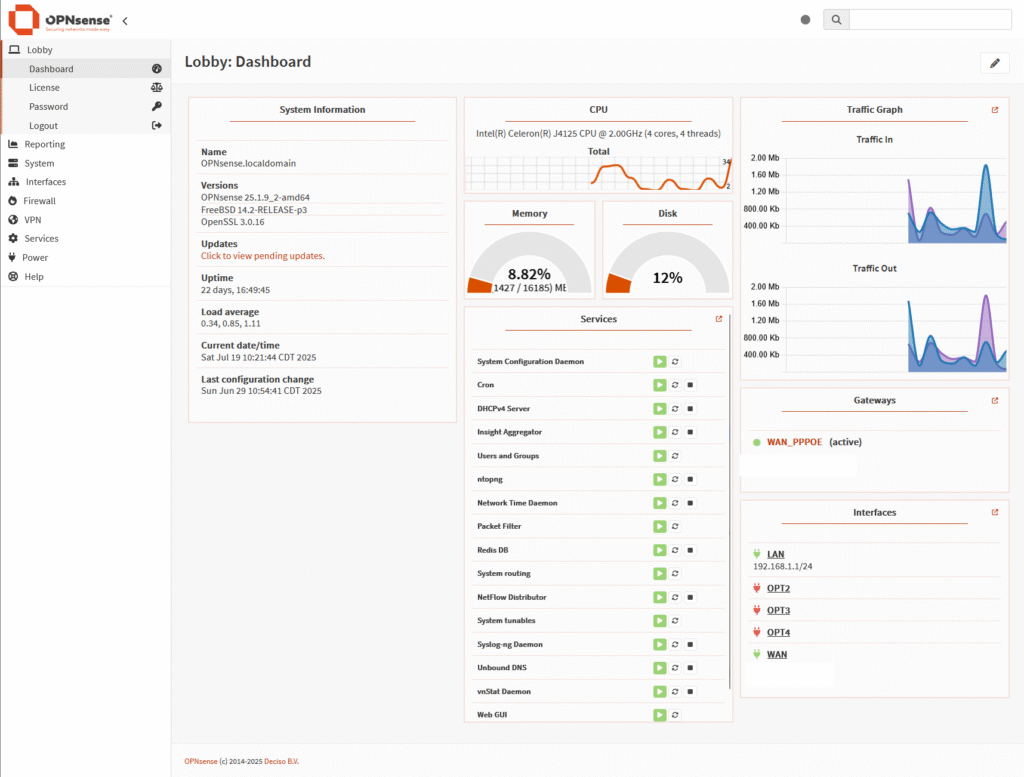

OPNsense Dashboard

Overall, I find the OPNsense user interface to be cleaner and more modern compared to other firewall platforms. It offers a well-organized layout with easy navigation and built-in monitoring tools like CPU and traffic charts right on the dashboard. The menu being on the left and easily to expand and collapse menus or use the search to find what you are looking for.

Initially, I thought it was missing a dark mode, which would have been a nice touch for nighttime use or lower eye strain. After digging into the settings, I was pleasantly surprised to find that dark mode is actually available, although it isn’t immediately obvious at first glance.

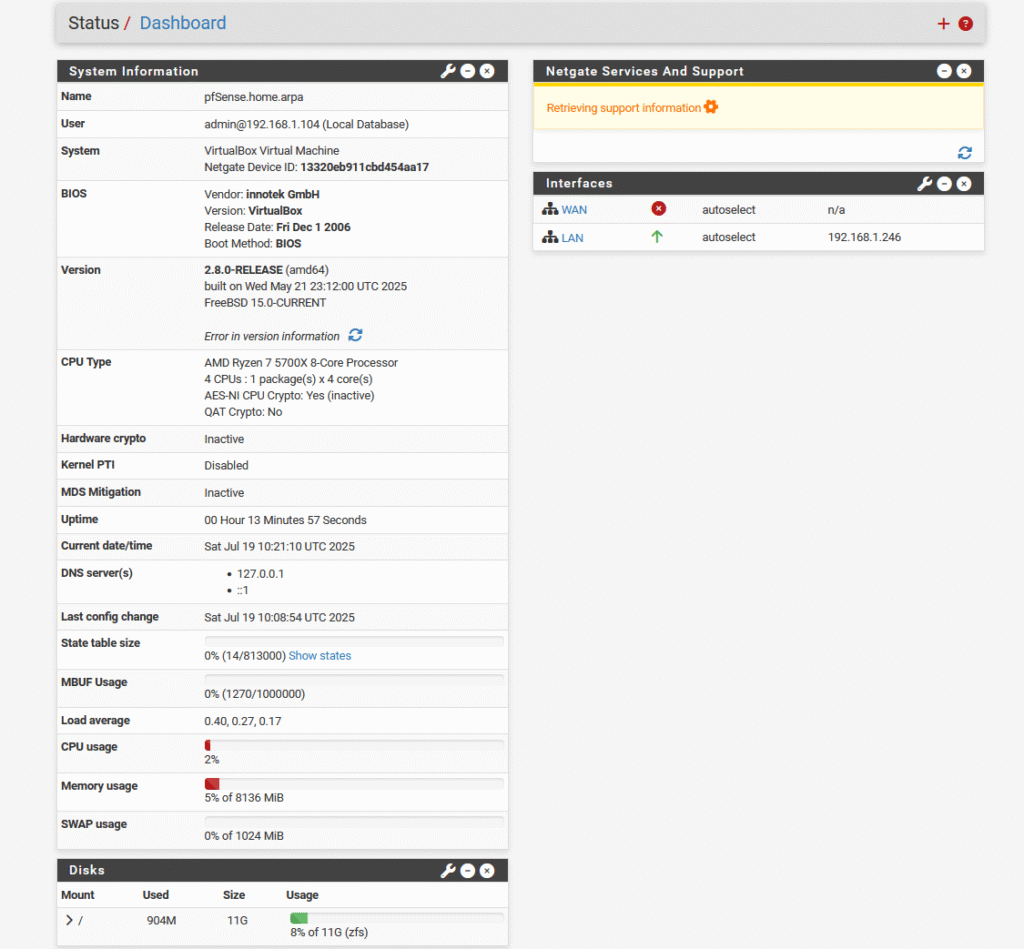

pfSense Dashboard

The pfSense dashboard is straightforward and includes the essentials, but it lacks modern or dynamic widgets. The main menu is positioned at the top, making it easy to see the contents of each section. While the breadcrumb navigation helps a bit when drilling down into menus, the overall interface feels a bit old-school and clunky compared to more modern platforms.

System Settings

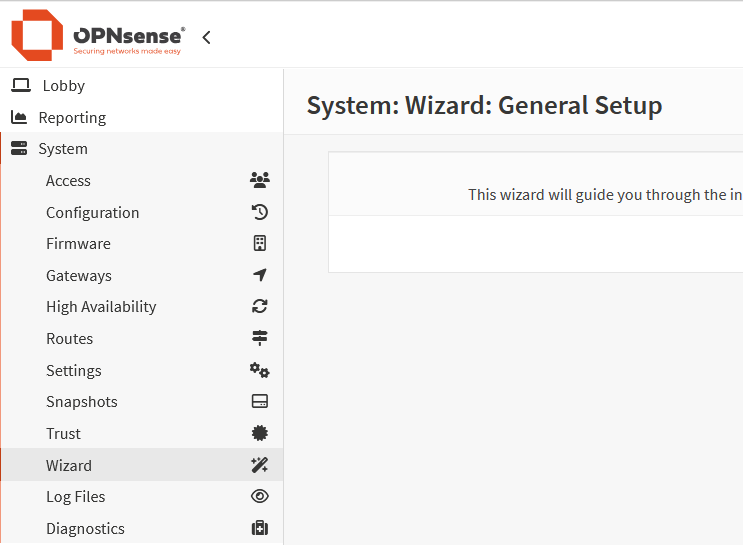

OPNsense System Settings

In OPNsense, this section is where you manage core administrative tasks and system maintenance. You can control user and group access, back up and restore configuration settings, update firmware, create system snapshots, and review log files. It acts as a central location for keeping the system secure, up to date, and easy to recover if something goes wrong.

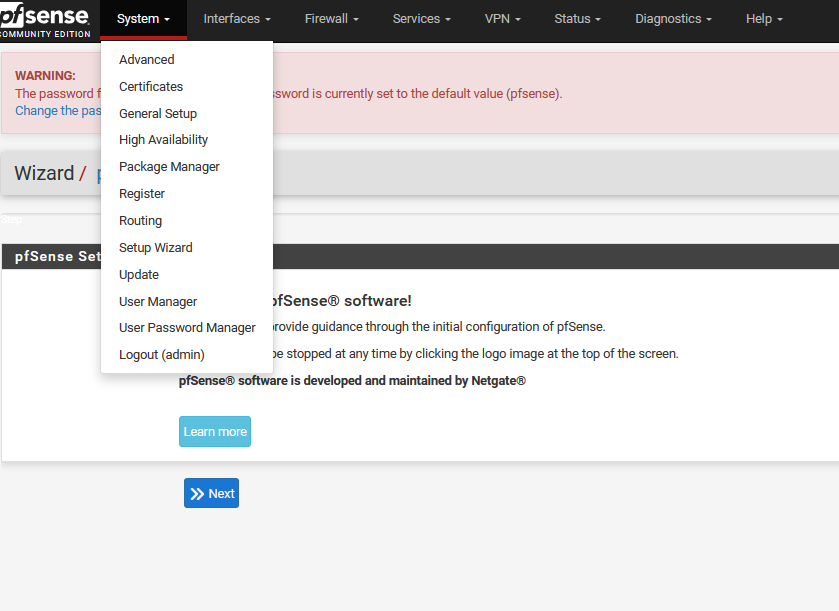

pfsense System Settings

In pfSense, this area is used to manage core system settings and overall platform behavior. From here, you can configure General Setup options, install and manage packages through the Package Manager, handle system updates, and control user accounts and passwords. It serves as the central hub for maintaining and administering the pfSense installation.

Interface Settings

In this section you can configure your physical interfaces that are available to your firewall.

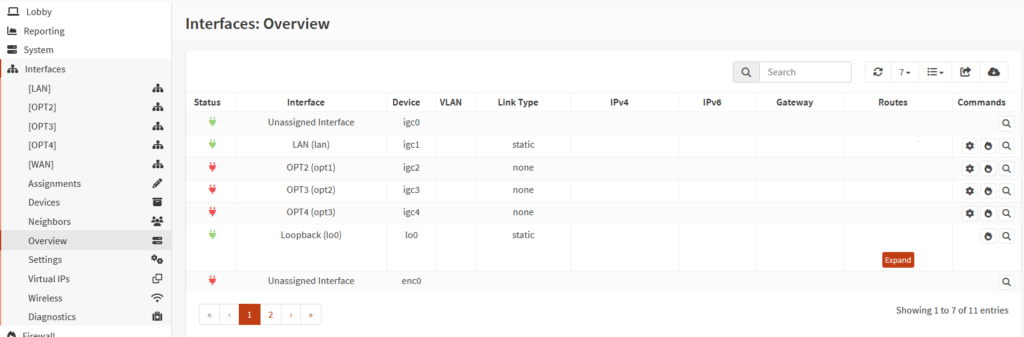

OPNsense Interface Settings

For OPNsense, this section is where you configure and manage the physical network interfaces available to the firewall. You can assign interfaces, set IP addresses, define VLANs, and control how each port is used within your network. It serves as the foundation for separating WAN, LAN, and any additional network segments.

pfsense Interface Settings

Similar to OPNsense, this section in pfSense is where you configure and manage the network interfaces connected to the firewall. From here, you can assign WAN and LAN roles, set IP addresses, configure VLANs, and fine-tune interface-specific settings as your network evolves. Proper configuration in this area is essential for reliable connectivity and effective traffic control across your network.

Firewall Capabilities

When it comes to creating and managing firewall rules, I think OPNsense and pfSense are pretty similar. Both have a familiar layout with clear rule sets, easy interface selection, and support for aliases to keep things organized. The UI is different between the two, but the overall process of setting up and reviewing rules feels about the same.

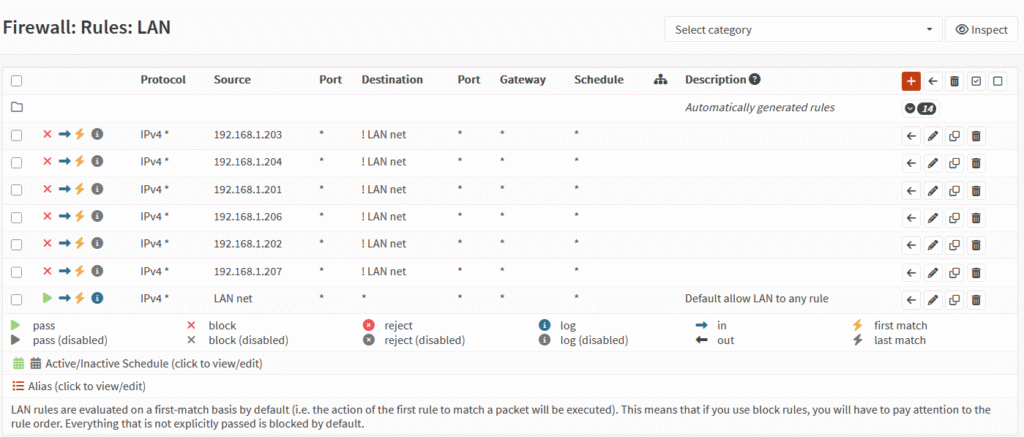

OPNsense Firewall

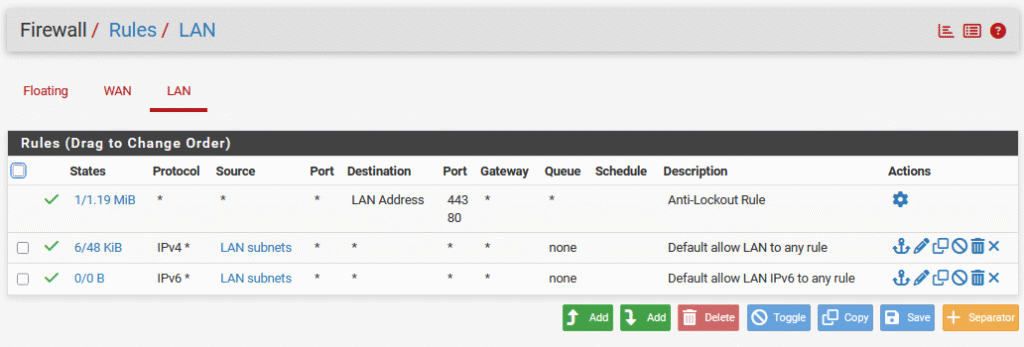

pfSense Firewall

VPN

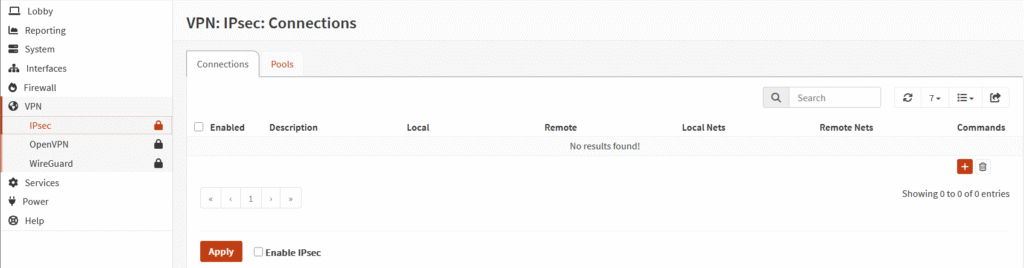

OPNsense VPN

OPNsense includes three built-in VPN options right out of the box: IPsec, OpenVPN, and WireGuard. This gives you plenty of flexibility, whether you’re setting up site-to-site connectivity, remote access, or a lightweight modern VPN. While I haven’t personally configured these VPNs yet, OPNsense does provide built-in tools and documentation to guide the process. If you’re planning to set one up, I’d recommend following a well-written online guide or the official documentation to ensure everything is configured securely and correctly.

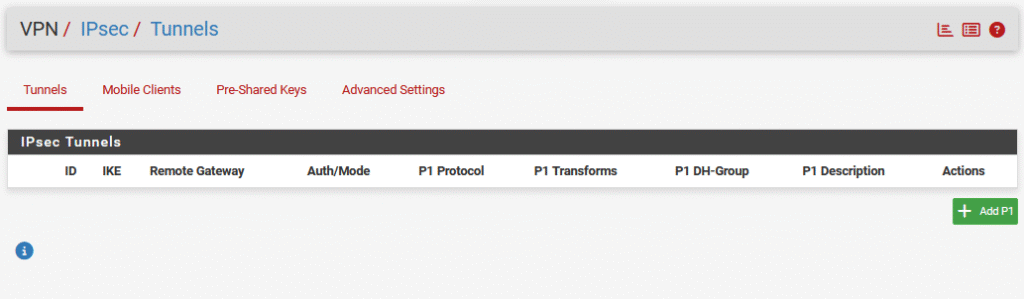

pfSense VPN

pfSense also includes multiple built-in VPN options out of the box, including IPsec, Layer 2 Tunneling Protocol (L2TP), and OpenVPN. These options cover common use cases such as remote access and site-to-site VPN connections. While I haven’t personally set up any of these VPNs yet, pfSense offers extensive documentation and community resources to help guide the setup process. If you’re planning to configure a VPN, following a reputable online guide or the official pfSense documentation is the best way to ensure a secure and reliable setup.

Services

OPNsense Services

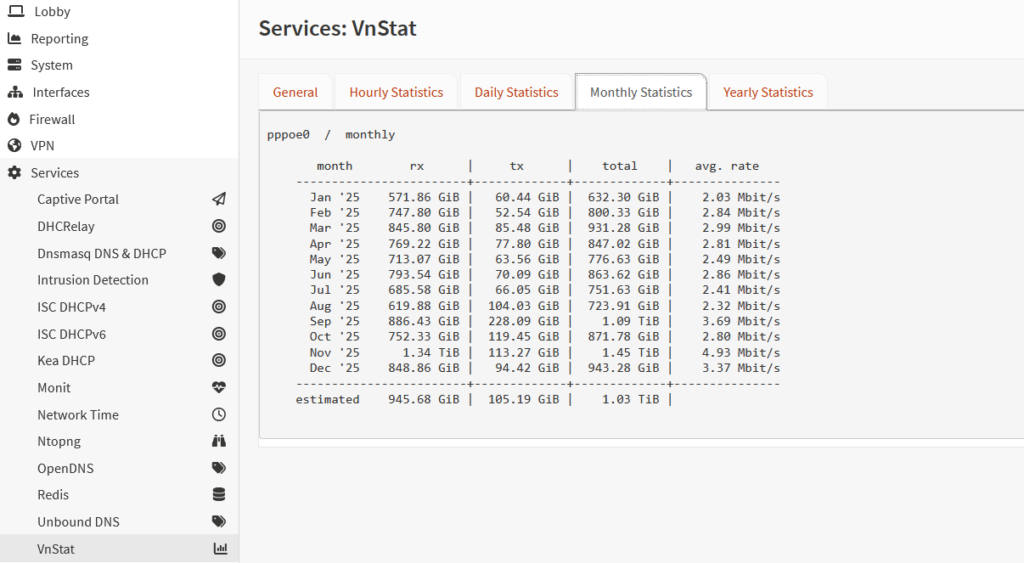

OPNsense includes a wide range of built-in services that can be enabled as needed, including DHCP, NTP, and network traffic monitoring tools. One service I use the most is vnStat, which offers a simple and effective way to track bandwidth usage over time. It makes it easy to review monthly data consumption trends, which is especially helpful for monitoring usage limits and understanding overall network behavior.

OPNsense DHCP

In OPNsense, this section allows you to manage Dynamic Host Configuration Protocol (DHCP) settings for your network, supporting both IPv4 and IPv6. You can configure address pools, reservations, and a variety of advanced DHCP options to better control how devices receive network settings. This makes it easy to tailor IP assignment and network behavior to fit your environment.

OPNsense IDS/IPS

OPNsense includes support for Intrusion Detection System (IDS) / Intrusion Prevention System (IPS), allowing you to monitor and block suspicious network traffic to enhance security.

pfsense Services

pfsense DHCP

In pfSense, this section is used to configure and manage Dynamic Host Configuration Protocol (DHCP) settings for your network, with support for both IPv4 and IPv6. You can define address ranges, create static mappings, and adjust advanced DHCP options to control how clients receive their network configuration.

pfSense IDS/IPS

Out of the box, pfSense doesn’t have anything, but you can easily install add-on packages such as Snort and Suricata that are popular IDS and IPS respectively.

Software Philosophy

There has been some drama between the two and if you are interested, suggest reading this article : https://www.xda-developers.com/why-use-opnsense-over-pfsense-dont-trust-netgate/

OPNsense Software

OPNsense and pfSense have an intertwined history. OPNsense was forked from pfSense in 2015, and pfSense was forked from m0n0wall, so you can they both are derived from m0n0wall.

pfSense Software

The pfSense project began in 2004 as a fork of the m0n0wall project. While pfSense is open source, they do some some closed source code for their commercial/enterprise efforts.

Hardware

If you’re interested in running officially supported hardware, both OPNsense and pfSense offer solid options. Either way, going with vendor-supported hardware can offer better stability, updates, and peace of mind for critical setups.

OPNsense Hardware

• Mini PCs: A popular choice thanks to low power consumption and multiple Ethernet ports, making them ideal for dedicated firewall and router setups.
• Older Desktops or Servers: A cost-effective option if you already have spare hardware. Adding a dual or quad NIC allows for proper LAN, WAN, and VLAN separation, though power usage is typically higher.
• Official OPNsense Hardware: Turnkey mini computer to rackmount firewalls designed and supported by OPNsense. These offer reliability and support but come at a higher price point.
• Virtualized OPNsense: Running OPNsense on platforms like Proxmox or ESXi is flexible and budget-friendly if you already have capable hardware, with added benefits like snapshots and easy backups.

I have a full post dedicated to hardware recommendations for OPNsense.

pfSense Hardware

The hardware options for pfSense are going to be similar to the OPNsense options above. In general pfSense heavily pushes you toward their Netgate hardware. From a business prospective makes sense, but if you are a DIYer like me, it might not be the best option. If you are looking for a low cost official hardware supported solution, pfsense has cheapest option.

Documentation and Community Support

Both platforms offer detailed documentation and active community support. I’ve included links to the main documentation pages for each below if you want to dive deeper.

OPNsense Documentation

https://docs.opnsense.org

pfSense Documentation

https://docs.netgate.com/pfsense/en/latest/index.html

Resource Usage

I wanted to perform a resource usage, but with comparing bare-metal to virtual machine isn’t an apples to apples comparison, so maybe something I look at expanding in the future.

Summary of Comparison

	OPNsense	pfsense
Firewall Capabilities	Tied	Tied
VPN Options	IPsec, OpenVPN, WireGuard	IPsec, Layer 2 Tunneling Protocol (L2TP), OpenVPN
User Interface	Updated and newer	Functional, but older
IDP/IPS	Yes	Optional install
Software Philosophy	Open and straightforward	free community edition and a proprietary Plus
Official Hardware available	Yes	Yes
Documentation and Community Support available	Yes	Yes

Alternatives to OPNsense and pfsense

With my research I ran across a few other software solutions that might be good fits as well.

• OpenWrt
• DynFi (based off FreeBSD, I seen someone say its a fork of OPNsense)

Final Thoughts

After running OPNsense on a bare-metal setup for over two years, I still feel confident in the decision I made. While both OPNsense and pfSense offer strong features, solid community support, and official hardware options, OPNsense has stayed more aligned with the DIY and open-source community. Revisiting both platforms now, it’s clear that their core strategies haven’t changed much. While both offer similar capabilities in terms of firewall rules, VPN support, and documentation, I continue to prefer OPNsense for its cleaner, more modern user-friendly interface and support of the DIY community. At the end of the day, both platforms are capable and for most people, but for a hands-on, more flexible experience, I’m glad I went with OPNsense.
